Key Features
The 1200 x 3000 x 8mm prefinished square edge panels come trimmed and sealed.
Superior weather resistance and strength compared to other fibre cement panels of similar thickness.
Panels can be installed horizontally or vertically with expressed joints using the ExpressWall® fixing system.
The applied final sealant coating better withstands weathering, pollution and micoroclimatic conditions such as mould/algae.
Product Technical Information

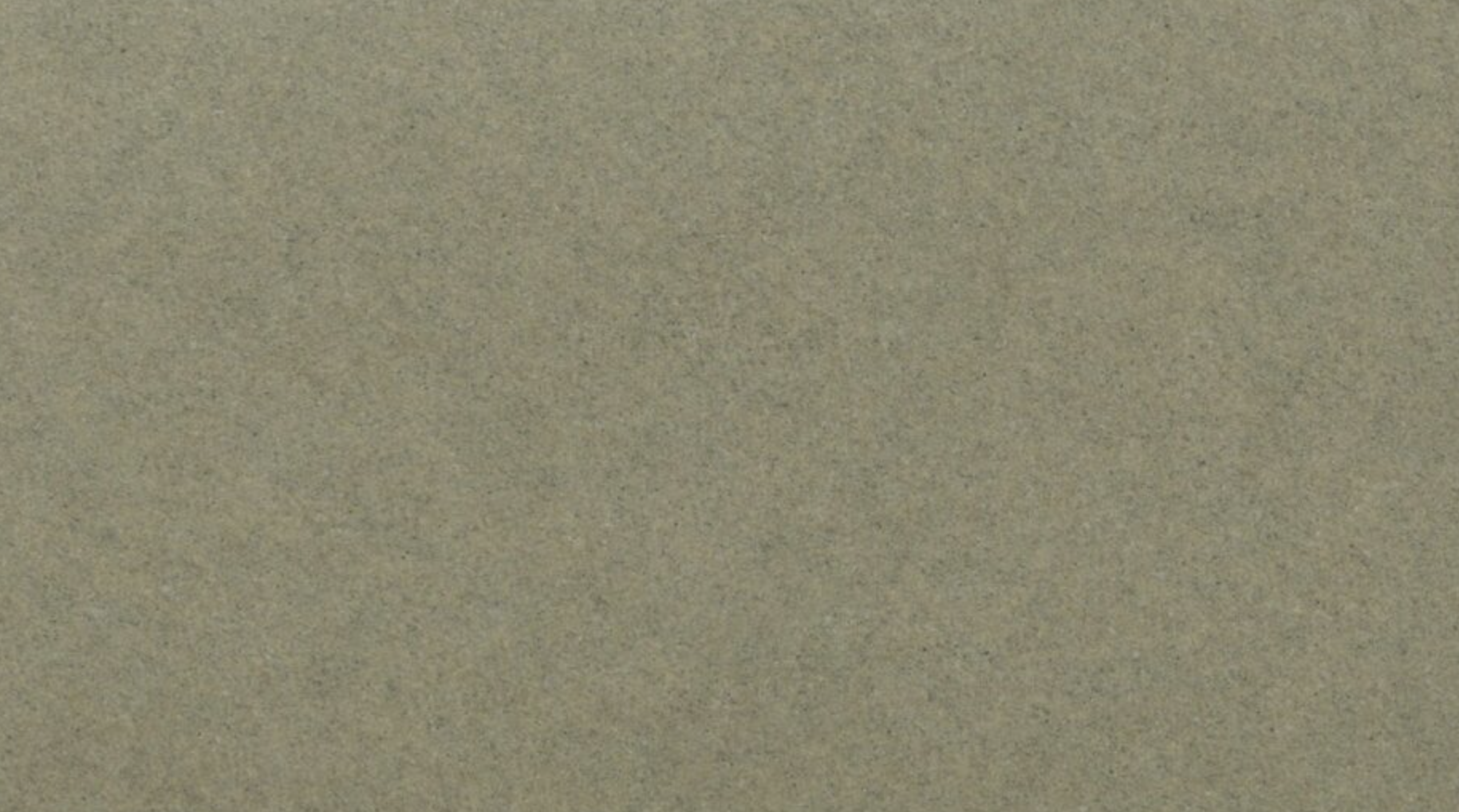

Base. A flat, smooth texture with an opaque coating.
String. An intricate texture of loose fine string embossed into the surface with an opaque coating.
Leather. A subtle, soft leather-like texture with an opaque coating.
Metal. A smooth surface with a subtle metallic sheen when light reflects off the surface.
Marl. A smooth texture with a transparent coating that reveals a fine grain sediment (marl) texture.
Disclaimer: Product images and samples may vary from actual product regarding colour and surface finish due to the manufacturing process and raw materials used.
Installation
External Wall Installation
Surround Cladding can be installed in various configurations using the ExpressWall top hat fixing system. This system is compatible with steel or timber stud framing, masonry, or concrete. Panels are secured with express joints using Surround colour-matched rivets. The design incorporates a Pressure Equalised Ventilated Cavity System, which enhances weather performance and moisture management.
Interior Wall Installation
Surround panels are also ideal for internal feature walls in dry areas. They can be fixed to timber or non-structural light gauge steel framing, as well as masonry, concrete, or autoclaved aerated concrete substrates via timber or MDF battens or metal furring channels. Concealed fixing is achieved using SIKA adhesive products. For steel framing, colour-matched rivets can be used for a seamless finish.
